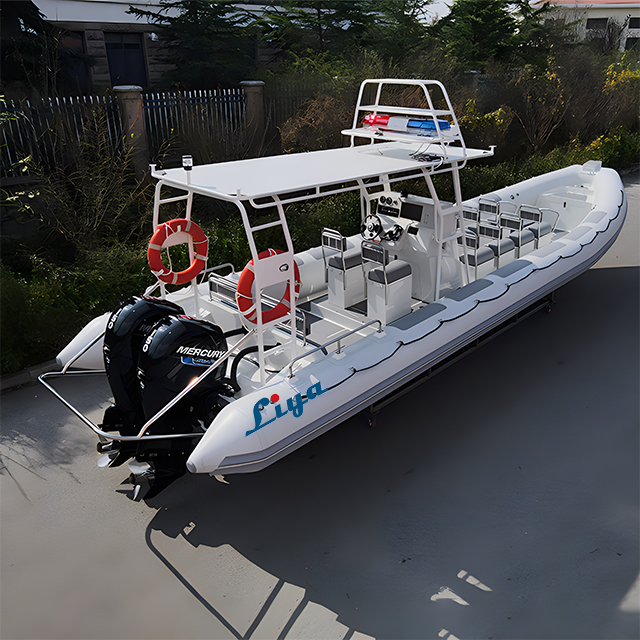

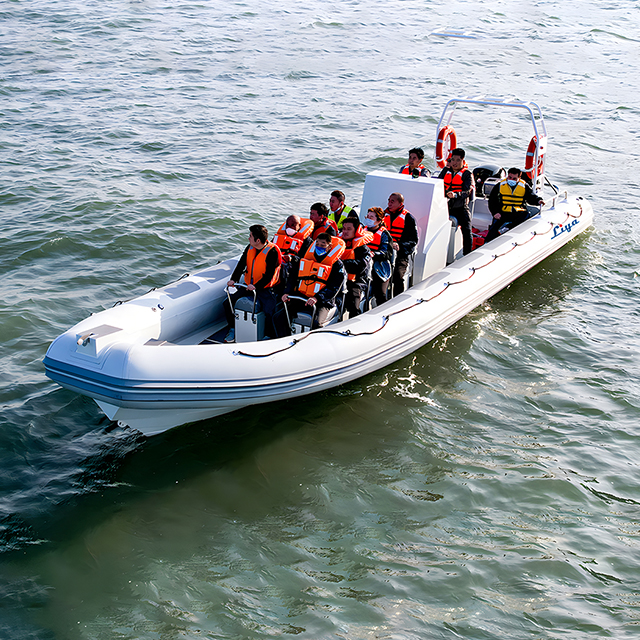

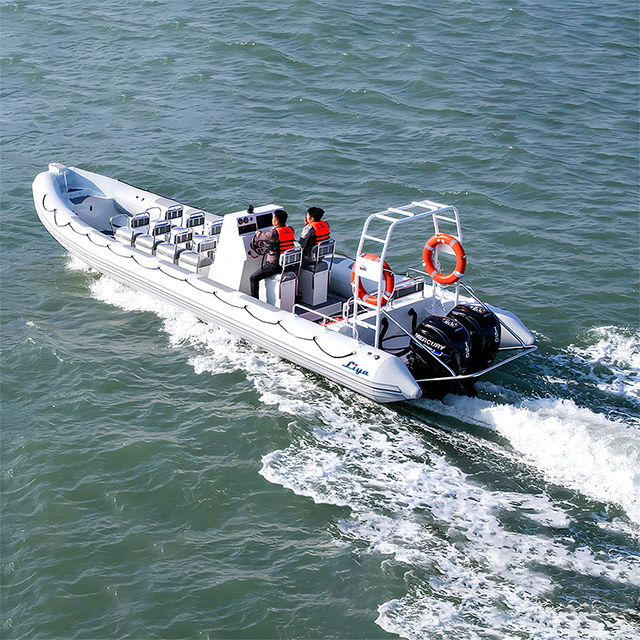

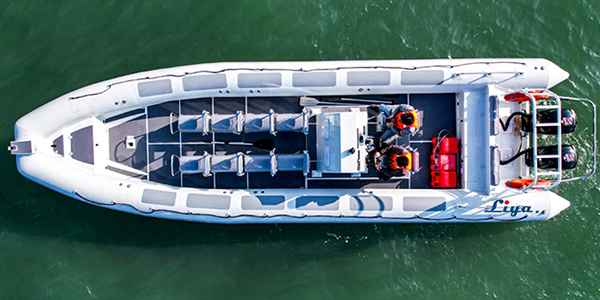

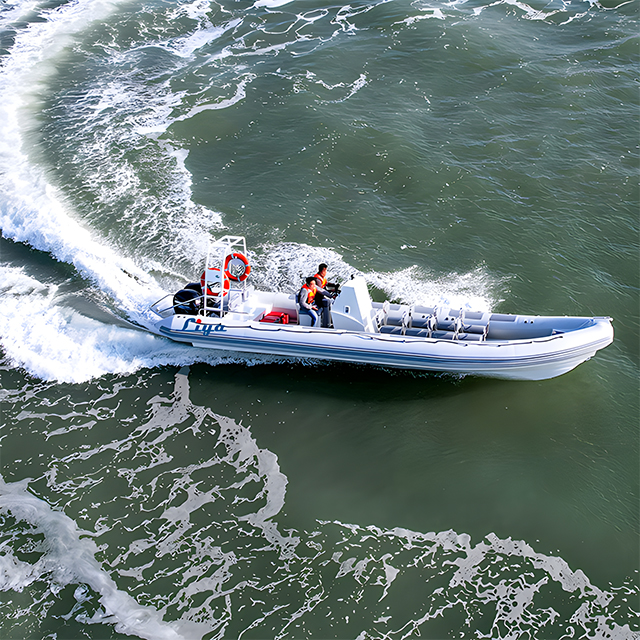

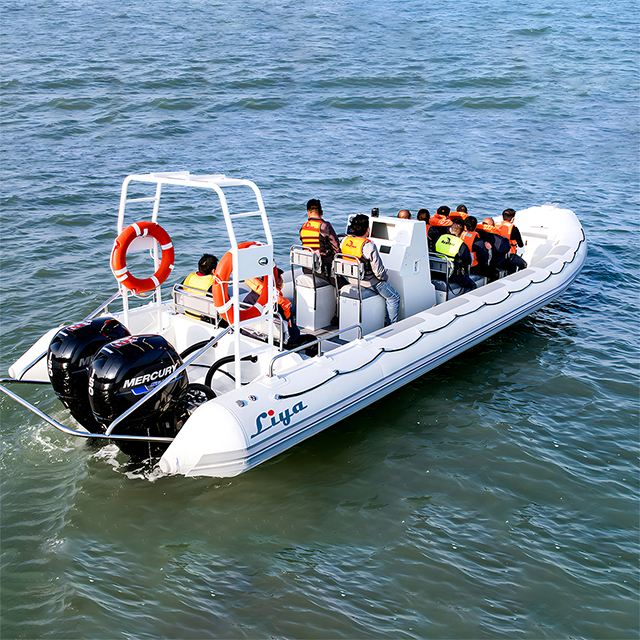

Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter
Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter

Liya Tube Option

1. French Orca Hypalon or Germany PVC Inflatable Tube

2. Solid Foam Tube

3. D Shaped Foam also available according to requirements



Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter

Recommended 250-300HP engine.
  • LY90-LY100

  • Liya

  • 8903.190000

库存: 0
Inquire

Liya 33 feet High quality Aluminum RIBs 9-10 meter with 20 people inflatable ribs Details and Features


Liya 10 meter rhib boats Patrol Boat in aluminium hull video

More other videos please visit https://www.youtube.com/@LiyaBoat

Liya 10meter aluminum hull inflatable boat aluminium rib boat has10- 20 seats and is available in single and double power options.

Liya Patrol Boat Aluminum hull Rib Boat 9-10 Meter

It is a water vehicle that is very suitable for team activities, water rescue or sightseeing.

The following is a detailed of this aluminum hull rib boat:

Materials and structure: The boat is mainly made of aluminum alloy bottom and hypalon tube materials. Aluminum hull is used to build the frame and support structure of the boat, while hyplaon or PVC  material  combination makes the boat both lightweight and durable.

Seating and Capacity: This rigid inflatble boat aluminium hull  has 10-18 seats, which means it can accommodate 20 people. This is very practical for group activities or sightseeing as it can carry more people at once.

Engine options: The 30 feet rib boat aluminum hull boat provides two power options: single engine and dual engine.

A single engine is more suitable for light use or short distance travel, while double engines can provide more power and faster speed, suitable for long distance or heavy load use.

Liya rib boat aluminum hull Usage scenarios: Due to its large capacity and flexible power options, this rib boat is very suitable for team activities, water rescue, travel and sightseeing, etc.

In team activities, it can provide enough space for everyone to participate; in water rescue, it can quickly deliver rescuers to the location of the incident; in sightseeing, it can provide a comfortable and safe ride experience .

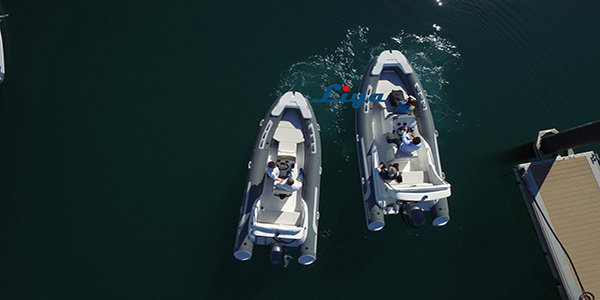

Liya 17 Feet Center Console Rigid Inflatable Boats 5.2 Meter


Liya 17 Feet Rigid Rib Boat video

More videos please visit https://www.youtube.com/@LiyaBoat

17 foot rigid rib boat

Liya 17 foot fiberglass hull inflatable rib boat features

It is a water vehicle suitable for home use, entertainment, gatherings and other occasions.



This inflatable rib boat combines the sturdiness of fiberglass with the lightness of an inflatable rubber boat, providing users with a safe and comfortable experience.


Liya 17 feet rhib boat Hull structure and design

The fiberglass part of the hull adopts vacuum adsorption technology, which can ensure the perfect combination of fiberglass and hull and enhance the overall strength of the hull.

Both the central control console and the operating seat are equipped with storage boxes to facilitate users to store items.

The front and rear sun cushions provide comfortable rest space for passengers.


The seat is equipped with a table board inside, which is convenient for users to take out and use when needed.


PVC sandwich foam is used inside the deck instead of traditional wooden boards. This design not only reduces the weight of the hull, but also enhances the buoyancy of the hull. The longitudinal and transverse keels in the hull play a role in strengthening the hull structure, making the hull stronger and more durable.


Liya 17 ft rib boat semi-rigid boat pontoon system

Liya 17-foot fiberglass hull inflatable boat uses the world's top HYPALON and PVC system pontoons.

HYPALON is an extremely weather-resistant synthetic rubber with excellent UV, ozone and chemical resistance, ensuring that the float maintains its original performance over a long period of use. The PVC system pontoon has excellent durability and buoyancy, providing additional safety to the hull.


About Liya Tube

1. Liya Inflatable Tube

France Orca Hypalon Tube: Ultraviolet Resistance, Weather resistance, High & low temperature Resistance, Mechanical & Abrasion Resistance, Fuel & Chemical Resistance, Water & Air Tightness.

Orca hypalon service life is approximately 15–20 years

Liya Hypalon Tube Guarantee: 5 Years


Germany PVC Tube:

PVC tubes are usually constructed in separate sections to reduce the effect of a puncture, each with a valve  to add or remove air.
PVC service life is approximately 10–15 years

Liya PVC Tube Guarantee: 3 Years

Safety with inflatable tube:UK Leafield  Top Class C7/ A6 valve to ensure no air leaking


2. Foam-filled Solid Tube:

Provide permanent buoyancy, eliminate leakage risks, and resist punctures and ruptures.


In addition, Liya Boat also have another RIB Boat with aluminum hull,more information,please click

19 Foot Rib boat aluminum hull and Liya Aluminium rib boat open deck

When using a 10-meter aluminum alloy rubber boat, the following are some things to pay attention to:

Safety equipment: Make sure the boat is equipped with necessary safety equipment, such as life jackets, fire extinguishers, etc. Before use, check that these devices are in good condition and become familiar with their use.

Loading limit: Although there are 20 seats on the boat, the load capacity of each seat is limited. When using it, make sure not to exceed the boat's load limit to avoid danger.

Smooth operation: During driving, avoid sharp turns, sudden braking and other violent operations to avoid rollover or collision of the boat.

Weather Conditions: Before using the boat, check whether the weather conditions are suitable for the trip. Avoid using the boat in bad weather (such as strong winds, large waves, fast currents, etc.) to ensure safety.

Wear appropriate clothing: When using the boat, wear appropriate clothing and avoid clothing that is too loose or draggy to avoid getting caught on the hull or obstacles in the water.


Follow the instructions for use: Before using the boat, read the instructions for use carefully and follow them. If you are not familiar with the operation method, it is recommended to use it under the guidance of professionals.

Regular inspection and maintenance: Regular inspection and maintenance of the boat, including checking whether the hull is damaged, rusted and other problems, and checking whether the power system is operating normally.

In short, when using a 10-meter aluminum alloy rubber boat, you must pay attention to safety, comply with regulations, maintain smooth operation, and conduct regular inspections and maintenance to ensure safe and comfortable use.


29.6-33Feet Aluminum hull Patrol Boat Tech Specification Data
ModelLY90-LY100
Length overall

9.0m-10.0 m/29ft-33ft

Inside length

8.0m-9.0 m/26ft-27ft

Width overall

3.15 m– 10.3ft

Inside width

1.8 m– 5.9ft

Tube diameter0.49m-0.58 m
V shape degree26°
Max Capacity18-20people
Max loading(kg)1900-2000
Net Weight (kg )1400-1500
Airtight compartment10pcs
40ft HQ container2pcs


Outboard engine data

Single engine shaftXL 25’
Twin engine shaftXL 25’
Recommended power (Hp)250-300HP
Max power (Hp)

(If install maximum hp engine, confirm

with factory, very important for boat)


400-500HP
