Liya Tube Option
1. French Orca Hypalon or Germany PVC Inflatable Tube
2. Solid Foam Tube
3. D Shaped Foam also available according to requirements

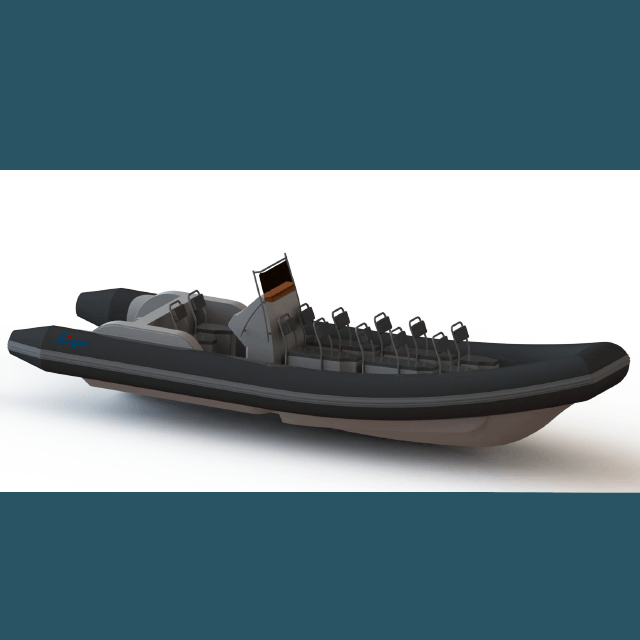

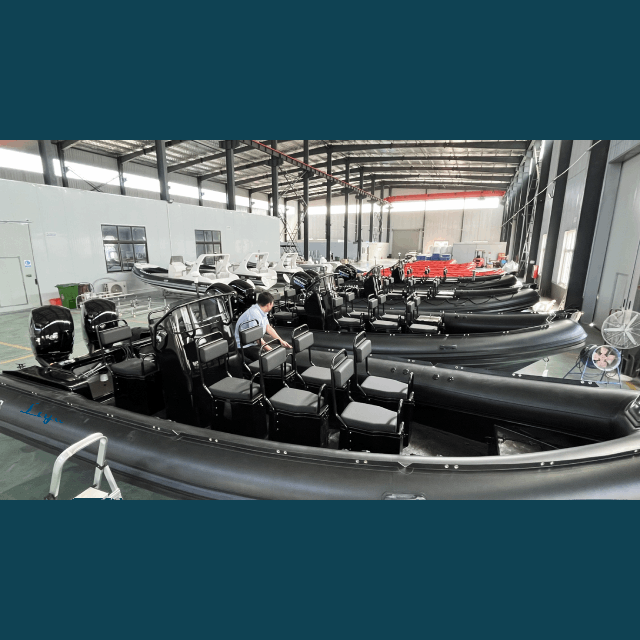

26Feet tactical rib boats for 16 passengers.
Recommended horsepower : 250HP
-
RIB790
-
Liya Boat
-
8903190000

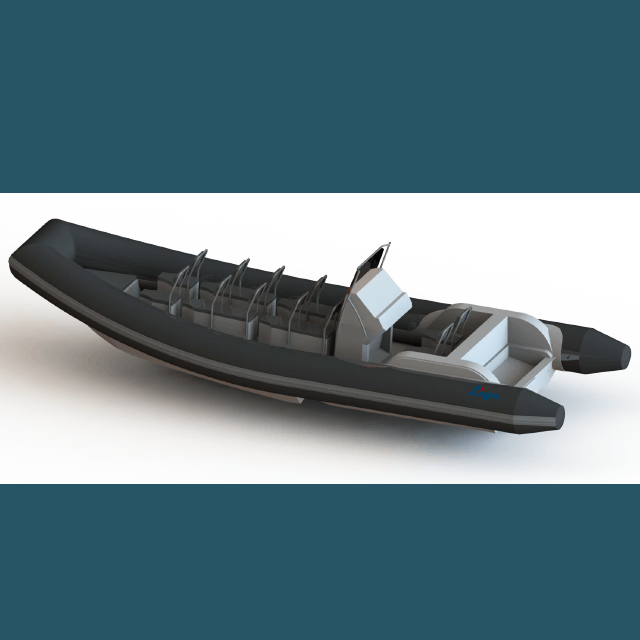

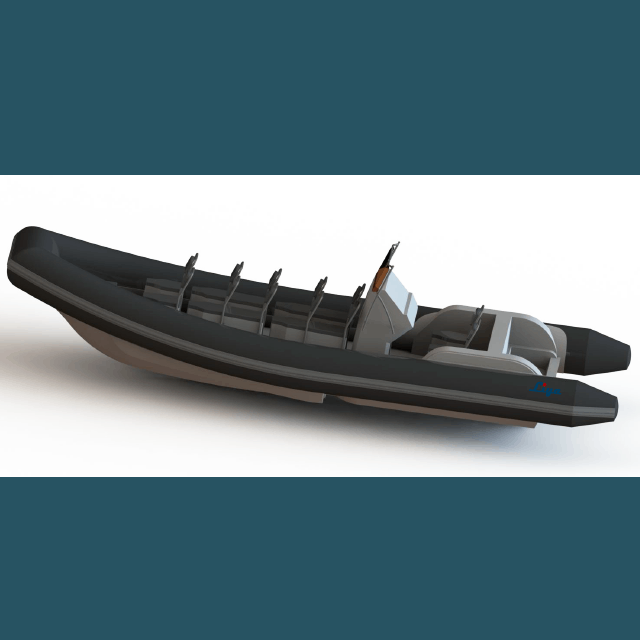

26Feet Semi Rigid Boat Descripiton
Overview
Liya 7.9-meter military grade inflatable RIB workboat redefines the performance boundary of tactical boats. Its vacuum adsorption fiberglass hull and military fibeglass waterproof deck form an all-weather combat platform. The innovative dual buoyancy system provides safety assurance, while the modular design supports rapid switching between multi task forms such as patrol, assault, and rescue.
1. Core design positioning
Specially designed for maritime patrol, tactical transportation, and rapid response missions, meeting the needs of multiple scenarios.
2. Performance and Security Assurance
The revolutionary vacuum adsorption glass fiber hull design achieves wave breaking ability and impact stability through reinforced structures, ensuring triple protection of speed, maneuverability, and safety in harsh sea conditions.
3. Deck protection system
️ Fully enclosed anti-corrosion deck
• Structure: Military grade PVC core waterproof board replaces traditional wooden decks
• Advantages: zero water absorption, zero corrosion, and leak prevention.
4. Dual mode buoyancy configuration
• Hypalon military grade inflatable tube: Made of French Orca Hypalon material, self-healing coating, puncture resistant
• Solid closed cell foam core: 100% permanent buoyancy, extremely damaged can still carry 16 • people full load buoyancy.
• D shaped foam tube:Design for foam core with D shape, also avaliable according to requirements.
5. Modular tactical configuration
️ Customize combat units as needed

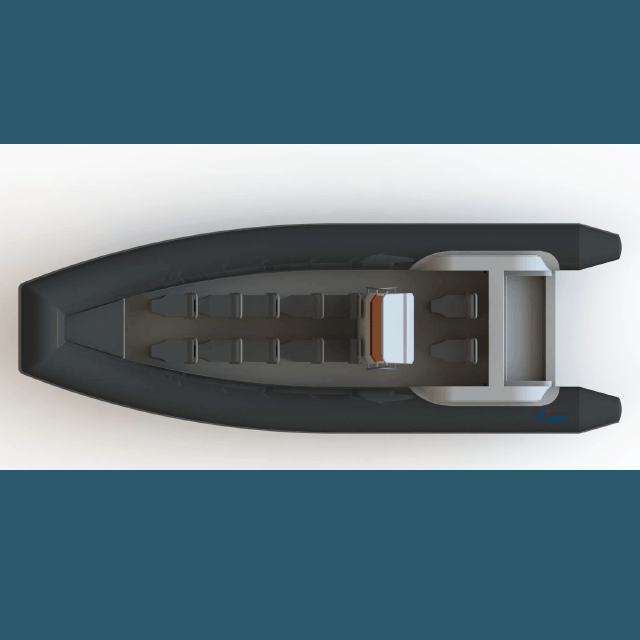

• Layout: Adjustable console+quick release seats, supporting "16 person transport" or "fully equipped tactical mode"
• Expansion interface: Prefabricated radar/GPS bracket, weapon mounting point, waterproof LED strong lighting system.
Liya 26Feet Tactical Rib Boat Technology Specification
DIMENSIONS & STRUCTURE
Total Length: 7.90m (26ft)
Internal Length: 6.6m
Total Width: 2.93m
Internal Width: 1.75m
Tube Diameter: 0.6m
⚖️ CAPACITY & WEIGHT
Capacity: 16 people
Max Load: 1800kg
Net Weight: 650-810kg
SAFETY & DESIGN
Air Chambers: 8 (Military-grade redundancy)
Buoyancy Options: Hypalon Air Tubes or Solid Foam Tubes
⚙️ POWERFUL ENGINE
Shaft: XL 25-inch
Recommended Power: 250 HP
Max Recommended Power: 300 HP
Single or twin engines for optional
PACKAGING
One 40 Foot Container Load: 2 Boats
NOTICE
When you install the maximum horsepower engine, please confirm with manufacturer.
26Feet Tactical Ribs Key Features
Core Highlights
⚡ Innovation| ️ Durability| flexibility
✅ Vacuum adsorption glass fiber hull
✅ Unbreakable PVC core deck
✅ Modular tactical layout
✅ Dual buoyancy system | 8-chamber redundant design
✅ 300 horsepower berserk output | 1800kg load | 16 person assault capacity
Excellent tactics
⚡ Vacuum adsorption fiberglass hull
Military-grade rigidity for storm-ready stability.
Wave-cutting design ensures speed + safety in rough seas.
Tactical Expansion Interface
• Weapon rack (NATO standard) | Radar/GPS integrated slot | Waterproof LED strong light illumination
️ Storm resistant engineering
PVC sandwich deck
Zero corrosion commitment
• Anti slip armor texture: full speed operation is still available in rainstorm/greasy environment
Dual buoyancy black technology
Hyperlon air tube: self sealing military grade tube,NATO-approved.
• Solid foam tube:100% unsinkable, zero maintenance.
Ultimate customization
Refactoring space according to tasks
• Adjustable Consoles: Left/right/center mounting.
• Shock-Absorbing Seats: Configure for troops or cargo.
• Tactical Add-Ons: Weapon mounts, radar slots, LED bars.
Rapid global deployment
One 40foot container of two boats: battlefield assembly can be completed in 90 minutes.

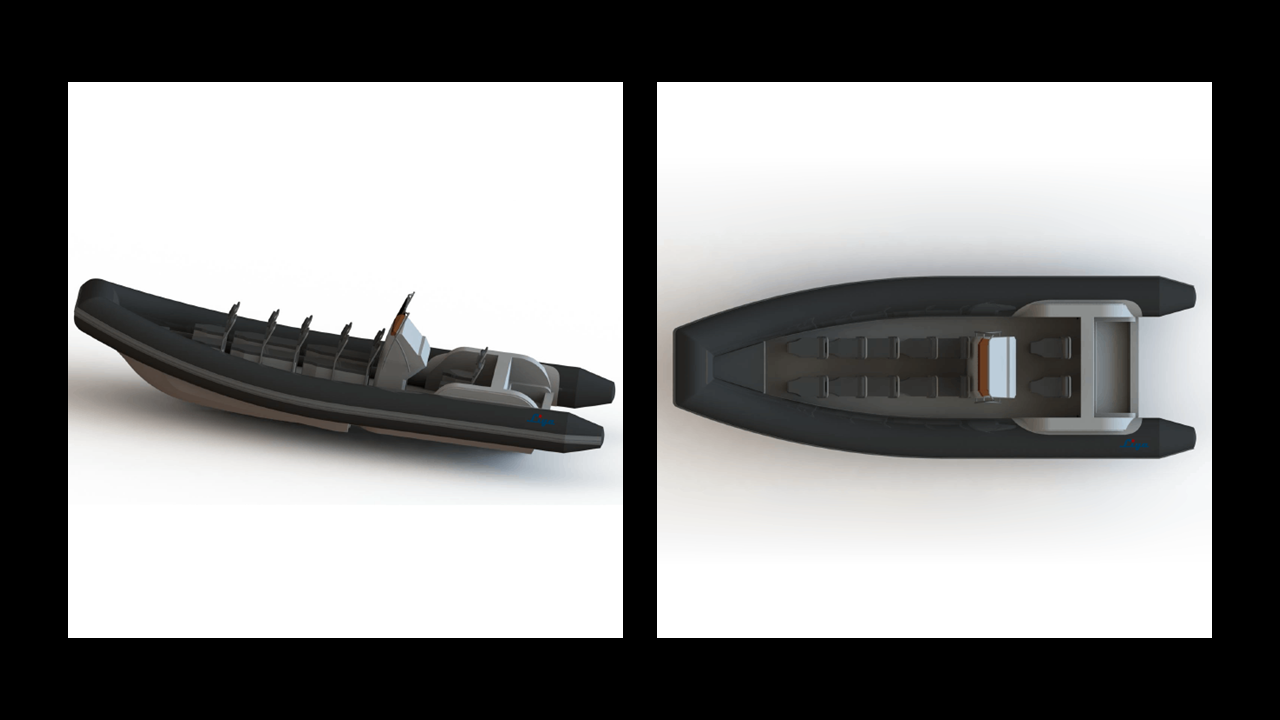

26Feet 16 Person Boat Standard Accessories Lists
Liya Inflatable Tube Standard Accessories
Operation and Seats:
1. Seats with cushions
2. Console
Hull protection and handrails:
1. Inflatable tube rubbing strake
2. Soft handle
3. Stern stainless steel hand rails
Valve accessories:
1. Air valve
2. Safety valve
Fuel system:
250L fuel tank
Other accessories:
1.Motor mounting plate
2.Repair kits
3. Foot pump & bilge pump
Solid Foam-filled Tube Standard Accessories
Operation and Seats:
1. Console
2. Seat with cushion
Handrail:
Stern stainless steel hand rails
Fuel System:
250L fuel tank
Other Accessories:
1. Outboard motor
2. Repair kits
3. Foot pump & bilge pump
Optional Accessories
Hull structure and decoration
1. Fiberglass gel coat color (Grade: GE GN, SX,)
2. Special cushion colors
3. Teak or EVA deck
4. Bow ladder
5. Bow stainless steel support
6. Hydraulic support pole
7. Stainless steel or aluminum T-top
8. Foldable canopy
9. Stainless steel or new aluminum arch with navigation light
10. Unidirectional drain valve
11. Water tank (including fresh water pump & shower)
12. 20 liters portable toilet
13. Insulated cabinet
Power and control system
1. Outboard motor
2. Hydraulic steering system
Anchoring system
1. Electric windlass
2. Stainless steel anchor chain (6mm or 8mm)
3. Stainless steel anchor
4. Fiberglass anchor base
Electronic equipment
1. VHF, IC-M330G type
2. Compass
3. Police flashing light
4. Stainless steel horn
5. Battery box with switch
Other accessories
1. Trailer
2. Stainless steel rifle rack
3. Boat cover
Safety equipment
1. Life vest
2. Life buoy
